KR2280V2

Introduction

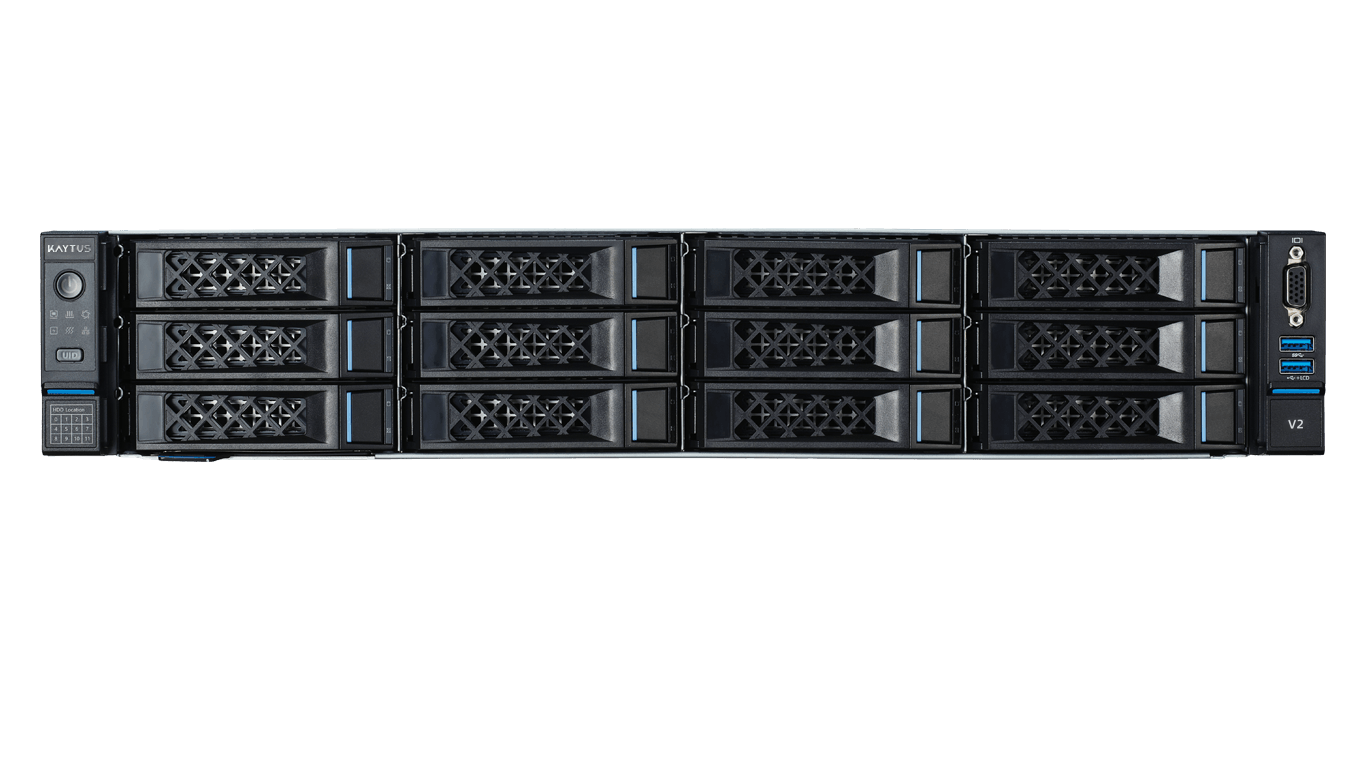

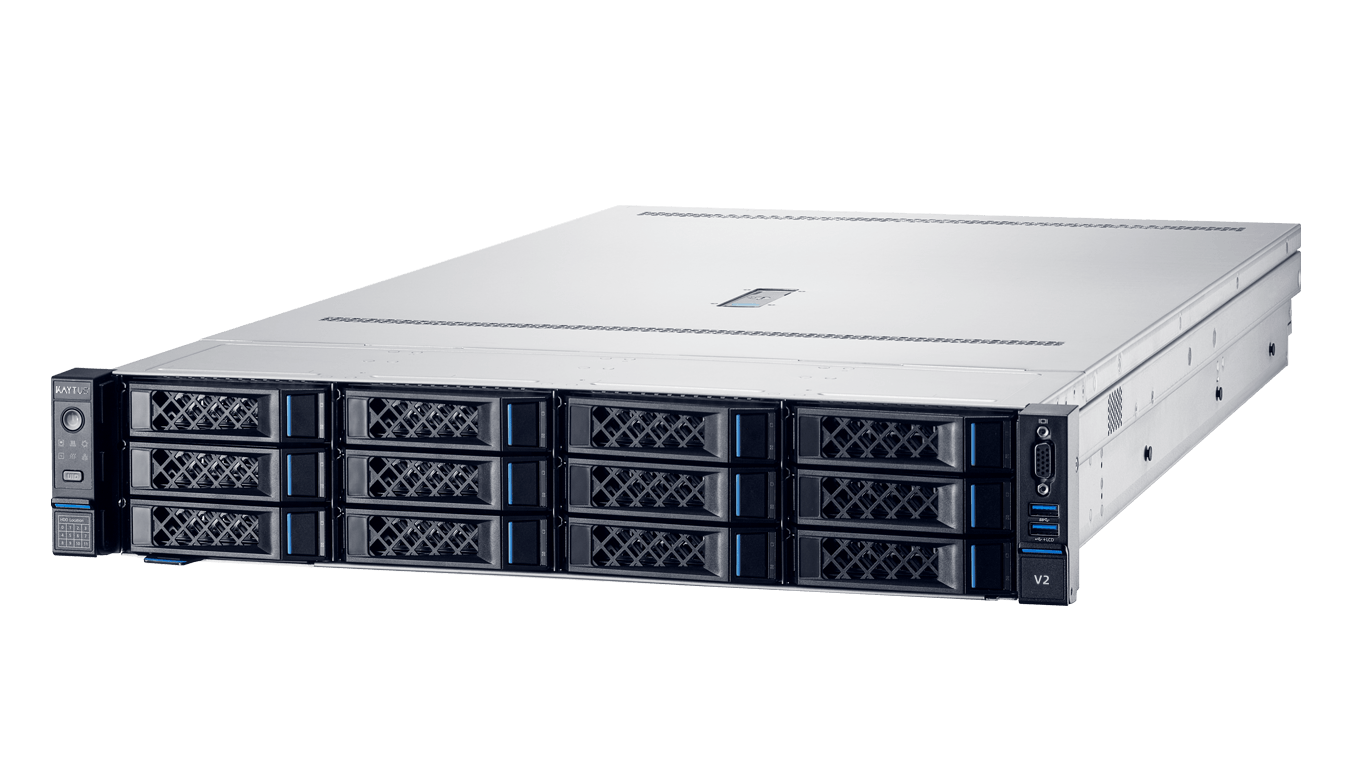

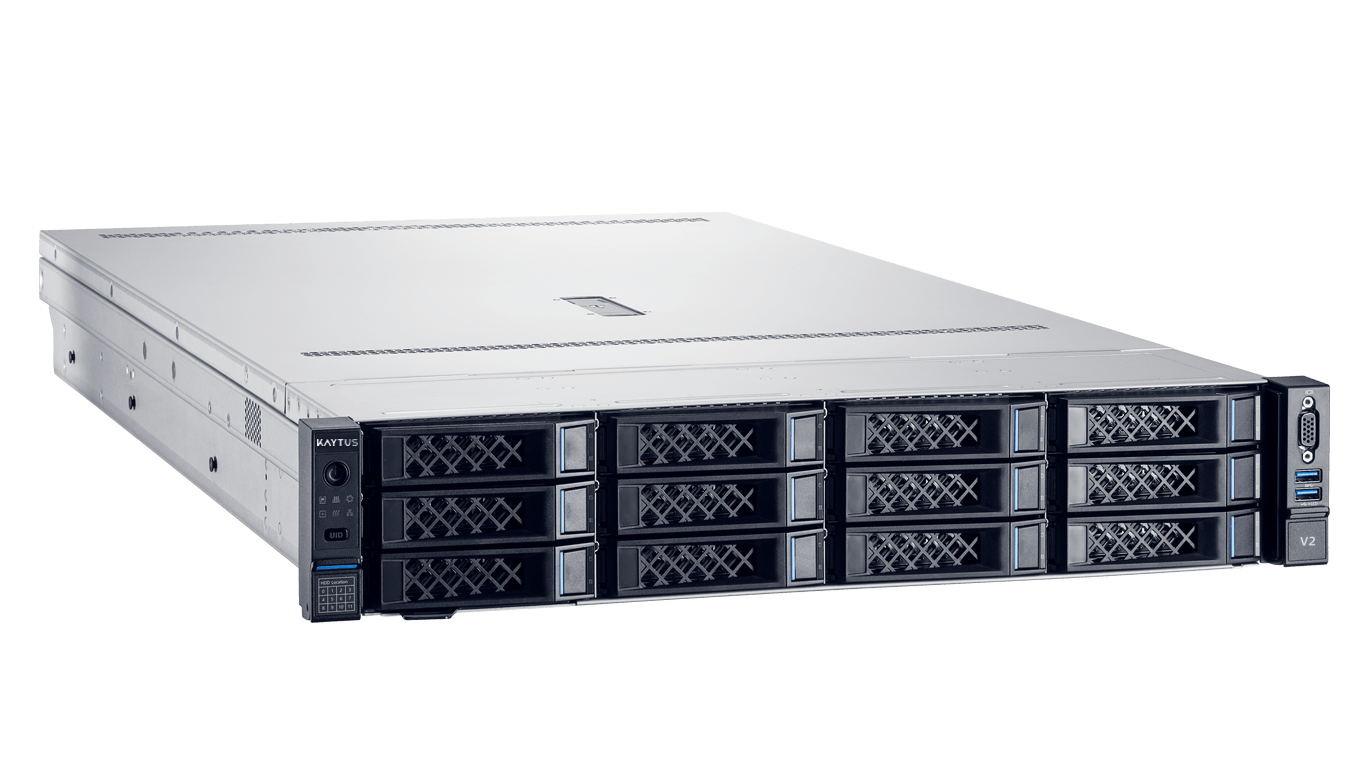

KAYTUS KR2280V2 AMD model is a high-end dual-socket server that uses 4th Generation AMD EPYC™ processors. With core features such as super multi-core, ultra-high memory bandwidth and large I/O throughput, the KR2280V2 AMD model provides more efficient computing resources and performance for compute-intensive applications, maintaining the consistent high performance and high-quality performance of KAYTUS Server. With flexible expansion, high-performance computing, high-efficiency operation and intelligent management capabilities, the product can be widely used in Internet, cloud computing, enterprise market, high-performance computing and other scenarios.

Key Features

Smart Management

User-friendly design, the entire system supports tool-free maintenance. The enhanced and optimized architecture design enables simple assembly/disassembly and greatly reduces O&M time
Unique intelligent regulation technology is combined with advanced air cooling system to create an optimum working environment and ensure the server lifecycle health
Flexible Expansion

Supports up to 20x 3.5-inch drives or 28/29x 2.5-inch drives
Supports 2x hot-swappable OCP3.0 slots with multiple network port options, delivering a more flexible network architecture to applications
Supports up to 10/9x standard PCIe Gen5 slots, further enhancing I/O performance
Supports optional internal SATA/NVMe M.2 SSD modules for diverse storage demands
Powerful Performance

Equipped with 4th Generation AMD EPYC™ processors, supports up to 128 cores and 256 threads per CPU, up to 400W TDP, a maximum turbo frequency of 4.4GHz, up to 1150MB L3 cache
Supports up to 24x DIMMs of DDR5 memory (RDIMMs and 3DS RDIMMs), offering a maximum 6 TB to deliver high speed and superior availability

Technical Specifications

Item	Description
Form Factor	2U rack server
Processor	Up to one or two 4th Generation AMD EPYC™ processors Up to 128 cores 1150MB L3 cache per CPU Up to 400W TDP
Memory	Up to 24x DDR5 DIMMs 12x DDR5 memory channels per processor, up to 4800MHz RDIMM and 3DS RDIMM supported
Storage	Front 12x 3.5-inch SATA/SAS/NVMe drives 24x 2.5-inch SATA/SAS/NVMe/E3.S drives 25x 2.5-inch SATA/SAS drives (up to 4x NVMe) SATA/SAS, supporting 4x NVMe) Internal 2x SATA M.2 SSDs or 2 x NVMe M.2 SSDs 4x 3.5-inch SAS/SATA drives Rear Up to 4x 3.5-inch SAS/SATA drives Up to 4x 2.5-inch SAS/SATA/NVMe drives Up to 2x M.2 SSDs or 2x E1.S SSDs
I/O Expansion Slot	KR2280-E2-A0-R0-00 supports up to 8x PCIe Gen5 slots and 2x hot-swappable OCP3.0 slots KR2280-E2-C0-R0-00 supports up to 7x PCIe Gen5 slots and 2x hot-swappable OCP3.0 slots Up to 4x dual-width GPUs or 8x single-width GPUs Up to 4x dual-width GPUs
Interface	Front: 1x VGA port, 1x USB3.0 port, 1x USB2.0 port Rear: 1x VGA port, 2x USB3.0 ports, 1x BMC management network port, 1x micro USB port
Fan	6x hot-swap fans with N+1 redundancy
PSU	550W/800W/1300W/1600W/2000W CRPS standard PSUs with 1+1 redundancy
System Management	Integrated with 1x independent 1,000 Mbps network port, dedicated for IPMI remote management
Security	TPM 2.0, TCM, BMC/BIOS chip-level redundancy, power capping, etc.
Operating System	Microsoft Windows Server, Red Hat Enterprise, SUSE Linux Enterprise Server, etc.
Dimensions. (W × H × D)	435mm × 87mm × 800mm
Weight	Full configuration: ≤30 kg (For details, please refer to the White Paper)
Operating Temperature	10°C to 35°C (For details, please refer to the White Paper)
