Introduction

Supports 4th/5th Gen Intel Xeon Scalable processors in delivering excellent computing, storage and scalability; provides front and rear I/O maintenance to overcome the O&M bottlenecks of the traditional data centers; integrates various advanced technologies from the industry to introduce the efficient liquid-cooling, EVAC, etc.; and upholding open innovation, extreme improvement, low power consumption, and intelligence & efficiency, flexibly meets the needs of diverse scenarios

Key Features
  • High Efficiency, Carbon Emission Reduction, and Low Power Consumption
    High Efficiency, Carbon Emission Reduction, and Low Power Consumption

    Supports efficient heat dissipation schemes such as cold-plated cooling and EVAC, and provides the data centers with the comprehensive liquid-cooling solutions.

    By working with KAYTUS's unique intelligent zone-oriented control technology, delivers energy-saving fan speed regulation and accurate air supply according to recent regional workload changes.

    With the focus on environmental protection, key server components meet the lead-free requirements (RoHS), and all packaging materials are recyclable.


  • Flexible Architecture and Security & Intelligence
    Flexible Architecture and Security & Intelligence

    The front I/O design enables O&M engineer to operate in the cold aisle, which simplifies O&M procedures, prolongs the service lifecycle of thermo-sensitive components such as optical modules and smart NICs, and improves data stability.

    The redundancy design of core components, such as the BIOS and BMC, ensures that the system can start by switching to the standby chip, and supports the online upgrade of the BMC without suspending services, thus guaranteeing service continuity.

    Adhering to the intelligent O&M, the cloud-based O&M and the online diagnosis can greatly simplify the difficulty in data center O&M and lower the O&M cost.


  • Break-thru Design and Full-scenario Adaptability
    Break-thru Design and Full-scenario Adaptability

    Offers ultimate computing, storage and network performance, and delivers flexible combination through modular design to support 45 × 2.5-inch drive or 20 × 3.5-inch drive and the optional rear M.2/E1.S SSD for diverse storage demands, and to support PCIe 5.0/4.0 for different scalability requirements, with up to 20 PCIe expansions.

    Supports up to 2 to 3 optional hot-swappable OCP 3.0 modules, and provides 1Gb, 10Gb, 25Gb, 40Gb, 100Gb, 200Gb, and 400Gb network interfaces.

    With Compute Express Link (CXL), an open-source and standard cache-coherent interconnect protocol, and E3.S storage medium, provides caching media apart from traditional DIMMs to meet the core needs of large-capacity cache services.


  • Excellent Performance and Efficient Computing
    Excellent Performance and Efficient Computing

    Equipped with the 4th/5th Gen Intel Xeon Scalable processors, supports up to 60->64 cores and 120->128 threads per CPU with up to 350W TDP and a max Turbo frequency of 4.2 GHz through 4 UPI links at 20 GT/s.

    Supports up to 32 DDR5 ECC DIMMs (5,600 MT/s, RDIMMs) in delivering high speeds and superior availability.

Technical Specifications

Item

Description

Form   Factor

2U rack server

Processor

Up to one or two 4th/5th Gen Intel Xeon Scalable processors

Up to 64 cores, with a max Turbo frequency of 4.2GHz

4 UPI links per CPU and up to 20 GT/s per link

Up to 350W TDP


Chipset

Intel Emmitsburg

Memory

Up to 32 DDR5 DIMMs (5,600 MT/s)

16 DIMMs per CPU and 32 DIMMs for 2 CPUs

RDIMMs supported

Storage

General

Front I/O

Front

12 × 3.5-inch SAS/SATA/NVMe drives

24 × 2.5-inch SAS/SATA/NVMe drives

25 × 2.5-inch SAS/SATA drives (up to 4 × NVMe)

24 × E3.S SSDs

Front

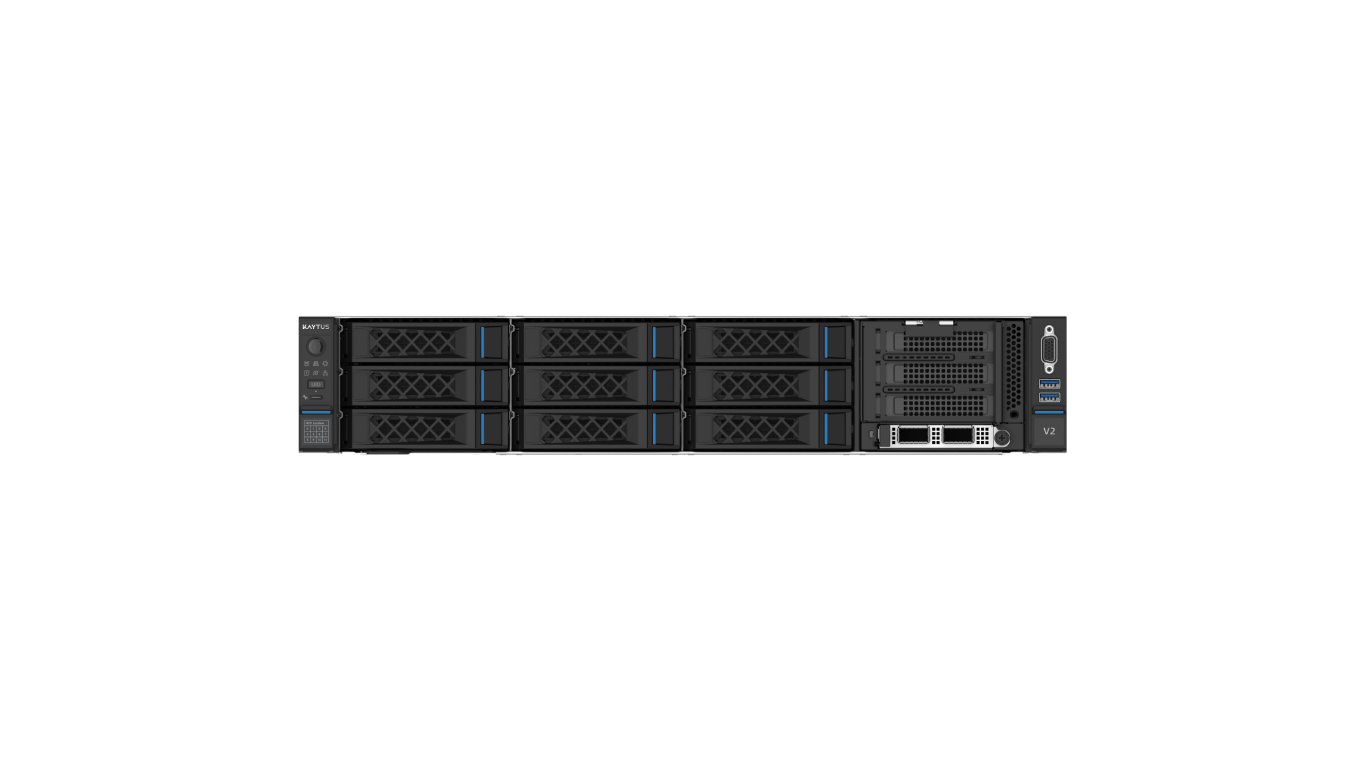

9 × 3.5-inch SAS/SATA drives (up to 2 × NVMe)

8/16 × 2.5-inch SAS/SATA/NVMe drives

Rear

4 × 3.5-inch SAS/SATA drives and 4 × 2.5-inch SAS/SATA/NVMe drives

4 × 3.5-inch SAS/SATA drives and 2 × SATA M.2/E1.S SSDs

10 × 2.5-inch SAS/SATA/NVMe drives and 2 × SATA M.2/E1.S SSDs

Rear

-

Internal Storage

Up to 3 × TF cards (1 for BMC, and 2 for PCH)

Up to 2 × SATA M.2 SSDs or 2 × PCIe x4 M.2 SSDs

Up to 4 × 3.5-inch SAS/SATA drives or up to 10 × 2.5-inch SAS/SATA drives

Internal Storage

Up to 3 × TF cards (1 for BMC, and 2 for PCH)

Up to 2 × SATA M.2 SSDs or 2 × PCIe x4 M.2 SSDs



Storage   Controller

RAID/SAS controller

Onboard PCH that supports 14 SATA connectors

Intel onboard NVMe controller and optional Intel NVMe RAID Key

Network

2 × optional hot-swappable OCP 3.0

3 × optional hot-swappable OCP 3.0

I/O   Expansion

Up to 16 PCIe expansion slots, including 1 RAID Mezz slot and 2 hot-swappable OCP 3.0 slots

Liquid cooling supports up to 9 PCIe expansion slots, including 2 hot-swappable OCP 3.0

Up to 20 PCIe expansion slots, including 1 RAID Mezz slot and 3 hot-swappable OCP 3.0 slots (1 for the front, 2 for the rear)

Port

Front: 1 × USB 2.0 port, 1 × USB 3.0 port, 1 × DB15 VGA port, 1 × USB type-C port

Front: 1 × USB 2.0 port, 1 × USB 3.0 port, 1 × RJ45 port, 1 × DB15 VGA port

Rear: 2 × USB 3.0 ports, 1 × DB15 VGA port, 1 × Micro USB system serial port, 1 × RJ45 port

Rear: 2 × USB 3.0 ports, 1 × DB15 VGA port, 1 × Micro USB system serial port, 1 × RJ45 port

Internal: 1 × USB 3.0 port

Internal: 1 × USB 3.0 port

Fan

6 hot-swappable N+1 redundant dual-rotor fans

Power   Supply

Supports 800W/1,300W/1,600W/2,000W/2,700W CRPS standard PSUs with 1+1 redundancy

System Management

Integrated with 1 independent 1,000 Mbps network port, dedicated to IPMI remote management

Security

Two-factor authentication, TPM 2.0, security panel, intrusion alert, BMC/BIOS chip-level redundancy, power capping, etc.

Operating   System

Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc.

Dimensions   (W × H × D)

With mounting ears: 482.4mm × 87mm × 828.4mm

Without mounting ears: 435mm × 87mm× 800mm

Weight

Full configuration: ≤33 kg (For details, please refer to the White Paper)

Operating   Temperature

5°C to 50°C (For details, please refer to the White Paper)
