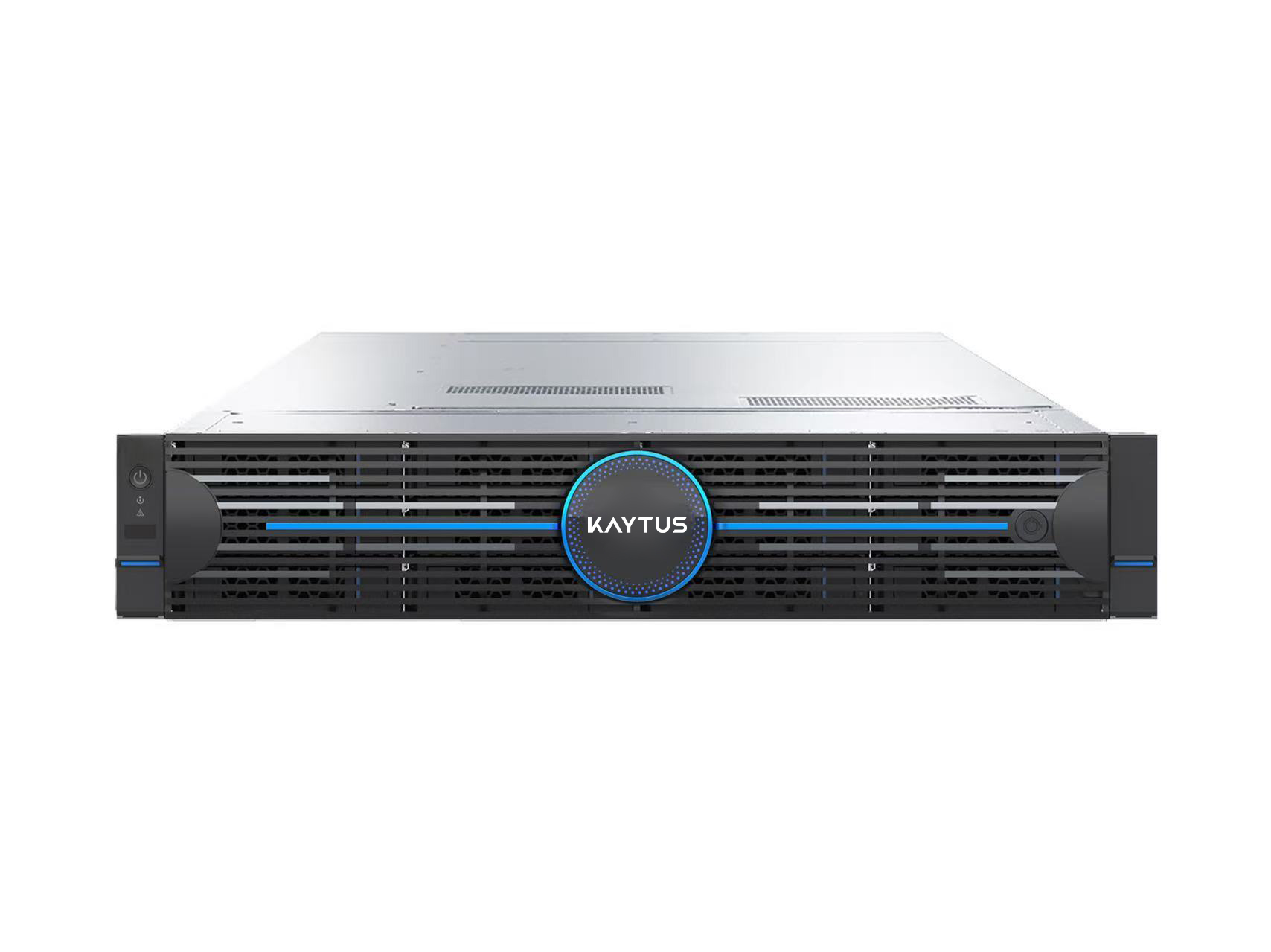

KS3000G7

KS3000G7 Storage Platform is an entry-level centralized all-flash storage solution designed for enterprise, healthcare, and educational application environments. It adopts a new all-flash architecture, with intelligent algorithms optimizing data  read and write processes end-to-end, resulting in higher system performance and lower latency. The platform offers a wide range of flexible software features, significantly enhancing data  read and write  efficiency and continuity. It supports various network environments including IP-SAN, FC-SAN, and RoCE, providing easy-to-use storage operation and management. All of  above  makes KS3000G7 Storage Platform fully meet the data storage needs of small to medium-sized databases for OLTP/OLAP, ERP/CRM, VDI, office OA, disaster recovery, backup, video storage, and other business scenarios.

Key Features
Leading architecture

(1)The industry-leading Active-Active storage architecture is adopted to achieve  load  balancing between controllers, eliminate controller performance bottleneck, and improve system performance.

(2)The storage system supports the configuration of volumes with or without ownership. The volume without ownership is combined with self-developed multi-path software to achieve load balancing of  multiple controllers and better system performance.

(3)The system adopts full redundancy architecture and modular design, with all core components being fully redundant to eliminate single point of failure and achieve high availability of  the storage system.

(4)The core components are supported by PCIe 4.0, which doubles the link bandwidth of  the whole machine and doubles the IOPS of  the storage system.


Ultimate performance

(1)With the new all-flash architecture, intelligent algorithms are used to optimize data  read  and write end-to-end, and operations such as data compression, strip aggregation, and overall writing are implemented to effectively reduce SSD write amplification and the performance of  storage system   is improved significantly; using wear balancing and anti-wear technology, data is written to the SSD  more evenly, effectively extending the average usage time of the SSD; support global garbage collection technology and Trim instructions, reduce the relocation of  invalid data in the SSD disk, extend the life of the SSD, and significantly improve system  performance.

(2)ITurbo the intelligent engine is accelerated  to  realize IO intelligent perception, CPU  resource  intelligent scheduling, data intelligent organization and other operations, and the performance of  storage  system  is greatly improved.


Safe and reliable

(1)There are multiple data  redundancy protection  modes, local support for write-time  replication, snapshot, clone and incremental  backup; support for InMetro, InRemoteCopy, 3DC and other disaster recovery solutions to ensure business continuity and  apply high availability.

(2)Intelligent distributed  RAID technology, redundant data blocks can  be quickly restored, data blocks and hot backup blocks are distributed on all hard disks. After a bad disk appears, all hard disks participate in reconstruction, and the data  reconstruction  time is shortened with  reducing the risk of  RAID failure and enhancing  system  reliability.

(3)Intelligent data encryption, effectively prevent data from being illegally accessed or leaked in storage, transmission, to ensure the security and integrity of data; intelligent data  erase, one-click intelligent erase of obsolete data, ensure secure use of critical and sensitive data.

(4)Supports online  hardware  expansion, online firmware upgrade, and online system  maintenance to ensure the continuity of  the  service system; supports continuous  BBU power failure protection for 2 times, and business is not interrupted within 2S~5S, easily respond to risks such as power outages at data centers.


Easier Management

(1)Graphical interface design: Provides online monitoring of storage performance, capacity, and system status, as well as DMP maintenance  wizard for fault events.

(2)Efficient  configuration  management: Supports GUI and CLI  management operations, supports configuration of  multiple role permission control, and realizes  efficient  management of storage data  access  permissions.

(3)Intelligent heterogeneous virtualization, heterogeneous storage devices of  mainstream  storage  vendors  eliminate  platform differences and  realize  efficient  reuse of  storage devices; at the same time, enhance data  mobility and eliminate data  islands, and the unified management of resources is simple and efficient.

(4)The Intelligent management platform can effectively solve IT system operation and maintenance problems, improve operation and maintenance efficiency, reduce operation and maintenance costs, ensure data reliability and availability, and ensure business continuity.


Technical Specifications

Model

KS3000G7

Control  Enclosure

KS3000G7-F-MS25 (2U25)

Disk  Enclosure

JBOD: 2U25/3U48 , SAS  protocol

JBOF: 2U25 , NVMe  protocol

RAID Rank

InRAID 5/6

CPU

Multiple multi-core CPUs (PCIE4.0)

System Cache  (dual-control)

128GB-512GB

Host Interface Card (dual-control)

8

Front-end Port Type

16Gb/32Gb/64Gb FC,1Gb/10Gb/25Gb/100Gb Ethernet, 25Gb/100Gb RoCE

Hot-Swap Modules

Controller, disk, BBU, power supply, FC card, SAS card, RoCE card

DRAM Cache Protection

Supports continuous 2 times BBU power failure protection, and ensure that business operations remain uninterrupted within 2~5 second power interruption

Resource Efficiency Improved

InThin, InRAID, InMigration, InTune, InVirtualization, InManagement, InCompression, InDedupe

Data Protection Software

InSnapshot, InClone, InBackup,  InRemoteCopy, InErase, In Metro, InEncryption

Critical Business Support

InQoS, InAutoPartition

Dimensions (W*D*H mm,

D is the length loaded  into the  rack)

447.00*741.30*87.00 (17.60 × 29.19 × 3.43 in.)

Weight (without hard disk, kg/lbs)

29.2/64.37

Max Power of the Power Supply

800W

Input Voltage of the Power Supply

AC: AC220V or AC110V double fire line (180-264V AC, 10A,50-60Hz, IEC60320-C14)

DC: DC240V (180-320V DC, IEC60320-C14)

Storage Temperature

-40℃~70℃ (-40°F to 158°F) (excluding BBU and HDD in the whole machine),

 0°C to 70°C (32°F to 158°F) is recommended
