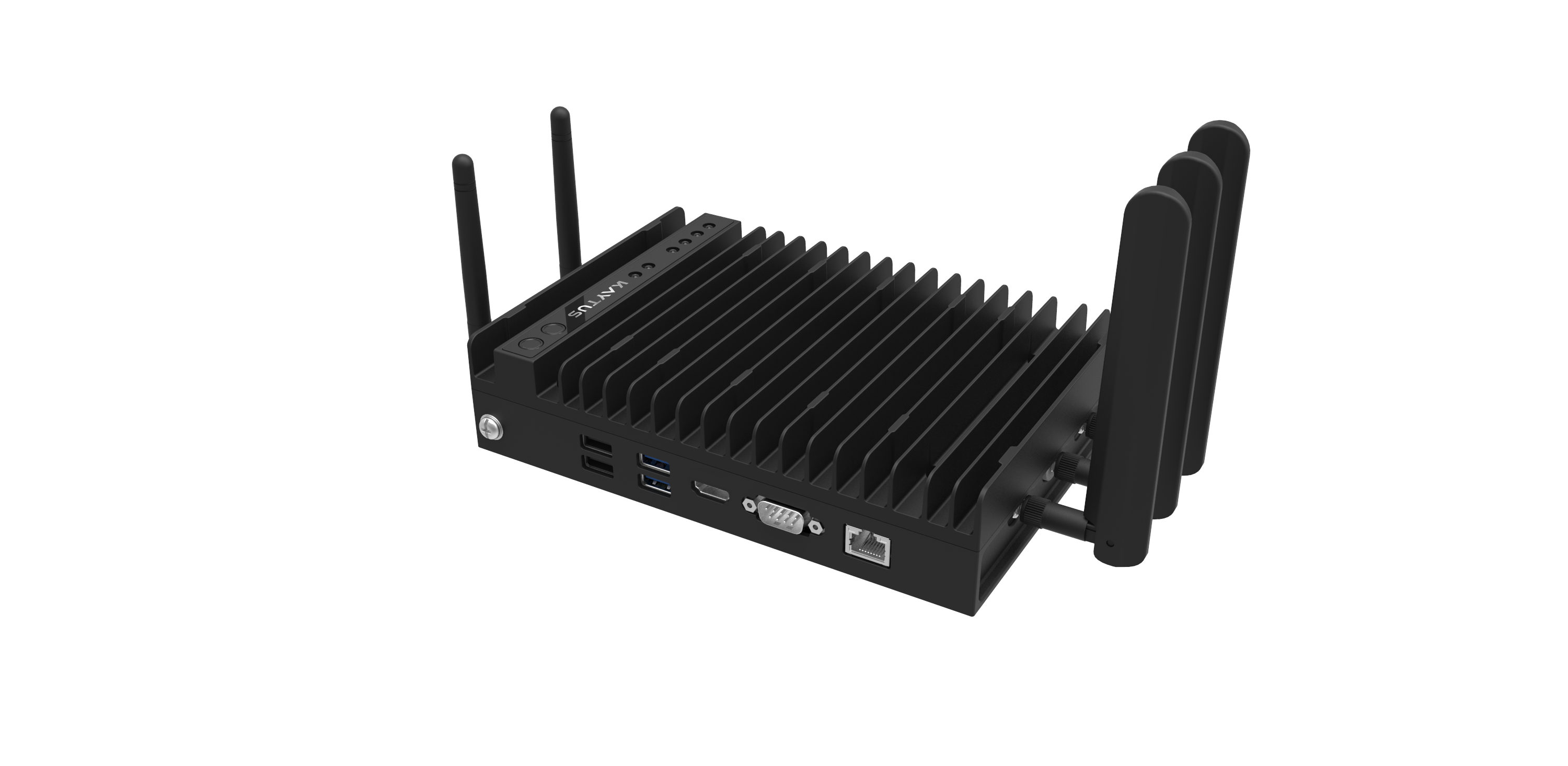

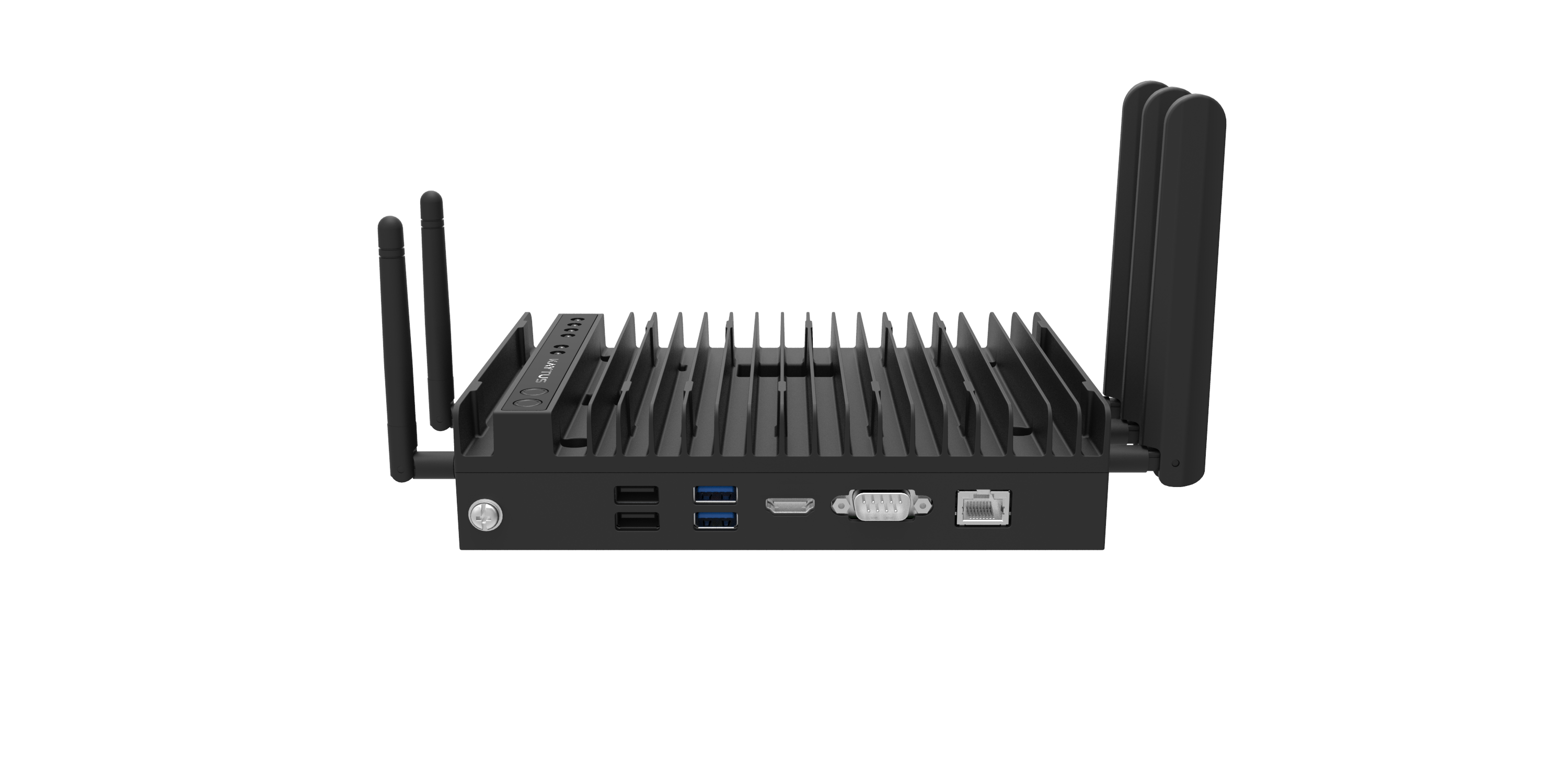

KES200 Edge Servers

Key Features

Multiple Communication Options

KES200 supports wired networks and wireless modules such as Wi-Fi/Zigbee, and 4G/5G, comprehensively covering a wide range of network application scenarios.
Excellent Environmental Adaptation

Different modules support various working temperature and humidity ranges. Operating temperatures can be as low as -40°C and as high as 65°C. KES200 also supports low-temperature slow start. In addition, it features an IP40 protection rating.
Centralized Management

Through the operation and maintenance management platform developed by KAYTUS, customers can achieve remote monitoring and management of large-scale deployments, which effectively reduces operational costs and fully guarantees information security.
Powerful AI Computing

KES200 delivers powerful AI performance with ultra-low power consumption. With up to 21 TOPS of computing power, it supports up to 32 channels of 1080P HD video decoding and 16 channels of 1080P HD video encoding at 30 fps; or up to 16 channels of 1080P HD video decoding and 6 channels of 1080P HD video encoding at 60 fps.

Technical Specifications

Computing module	Jetson Nano	Jetson TX2 NX	Jetson Xavier NX	Jetson Orin nano
AI Performance	472 GFLOPS	1.33TOPS	21 TOPS	40 TOPS
GPU	128 - core NVIDIA Maxwell™ GPU	256 - core NVIDIA Pascal™ GPU	384 - core NVIDIA Volta™ GPU with 48 Tensor Cores	1024 - core NVIDIA Ampere GPU with 32 Tensor Cores
CPU	Quad - core ARM® Cortex™ - A57 MPCore processor	Dual - core NVIDIA Denver2 64 - bit CPU and Quad - core ARM® Cortex™ - A57 MPCore processor	6 - core NVIDIA Carmel ARMv8.2 64 - bit CPU 1MB L2 + 4MB L3	6 - core NVIDIA Arm Cortex A78AE v8.2 64 - bit CPU, 1.5 GHz 1.5MB L2 + 4MB L3
Memory	4GB 64 - bit LPDDR4 25.6GB/s	4GB 128 - bit LPDDR4 51.2GB/s	8GB & 16GB 128 - bit LPDDR4x 51.2GB/s	8GB 128 - bit LPDDR5 68.2GB/s
Storage	16GB eMMC 5.1	16GB eMMC 5.1	16GB eMMC 5.1	-
Power	9V~36V (industrial DC-in connector & DC jack) / POE PD (802.3at)			9V~36V (industrial DC-in connector & DC jack)
Video Encode	1x 4K @ 30 (H.265/H.264) 4x 1080p @ 60 (H.265/H.264) 9x 720p @ 30 (H.265/H.264)	1x 4K @ 60 (H.265/H.264) 3x 4K @ 30 (H.265/H.264) 4x 1080p @ 60 (H.265) 8x 1080p @ 30 (H.265)	2x 4K @ 30 (H.265/H.264) 6x 1080p @ 60 (H.265/H.264) 14x 1080p @ 30 (H.265/H.264)	No NVENC Video Encode, supported by CPU -
Video Decode	1x 4K @ 60 (H.265/H.264) 2x 4K @ 30 (H.265/H.264) 8x 1080p @ 30 (H.265/H.264) 18x 720p @ 30 (H.265/H.264)	2x 4K @ 60 (H.265/H.264) 4x 4K @ 30 (H.265/H.264) 7x 1080p @ 60 (H.265/H.264) 14 x 1080p @ 30 (H.265/H.264)	2x 4K @ 60 (H.265) 4x 4K @ 30 (H.265) 12x 1080p @ 60 (H.265) 32x 1080p @30 (H.265) 2x 4K @30 (H.264) 6x 1080p @ 60 (H.264) 16x 1080p @ 30 (H.264)	1x 4K @ 60 (H.265) 2x 4K @ 30 (H.265) 5x 1080p @ 60 (H.265) 11x 1080p @30 (H.265) 1x 4K @30 (H.264) 3x 1080p @ 60 (H.264) 7x 1080p @ 30 (H.264)
Display	1x HDMI 2.0
Networking	1x RJ45 GbE port
USB	2x USB2.0 + 2x USB3.0
Wireless Network	Supports 4G/5G, WiFi/ZigBee modules			Wifi only
CAN(M)X/Serial Ports	1x CAN port (NX only)/1x COM RS232/485			1x COM RS232/485
Expansion	Speaker/Alarm/ 8 - bit IO Signal (DIO)/ Built - in SD card for storage expansion			Speaker/Alarm/ 8 - bit IO Signal (DIO)
Button & Appearance	2x plane buttons (reset&restore mode), 4x system status LED
Operating Temperature	- 40 - 65°C	- 40 - 60°C	- 40 - 55°C	- 20 - 55°C
Operating Humidity	5% - 95%			10% - 90%
Protection	IP40
Dimension	200mm x 140mm x 46mm
Thermal dissipation	Fan - less, supporting slow start at low temperature (- 40°C)			Fan - less
