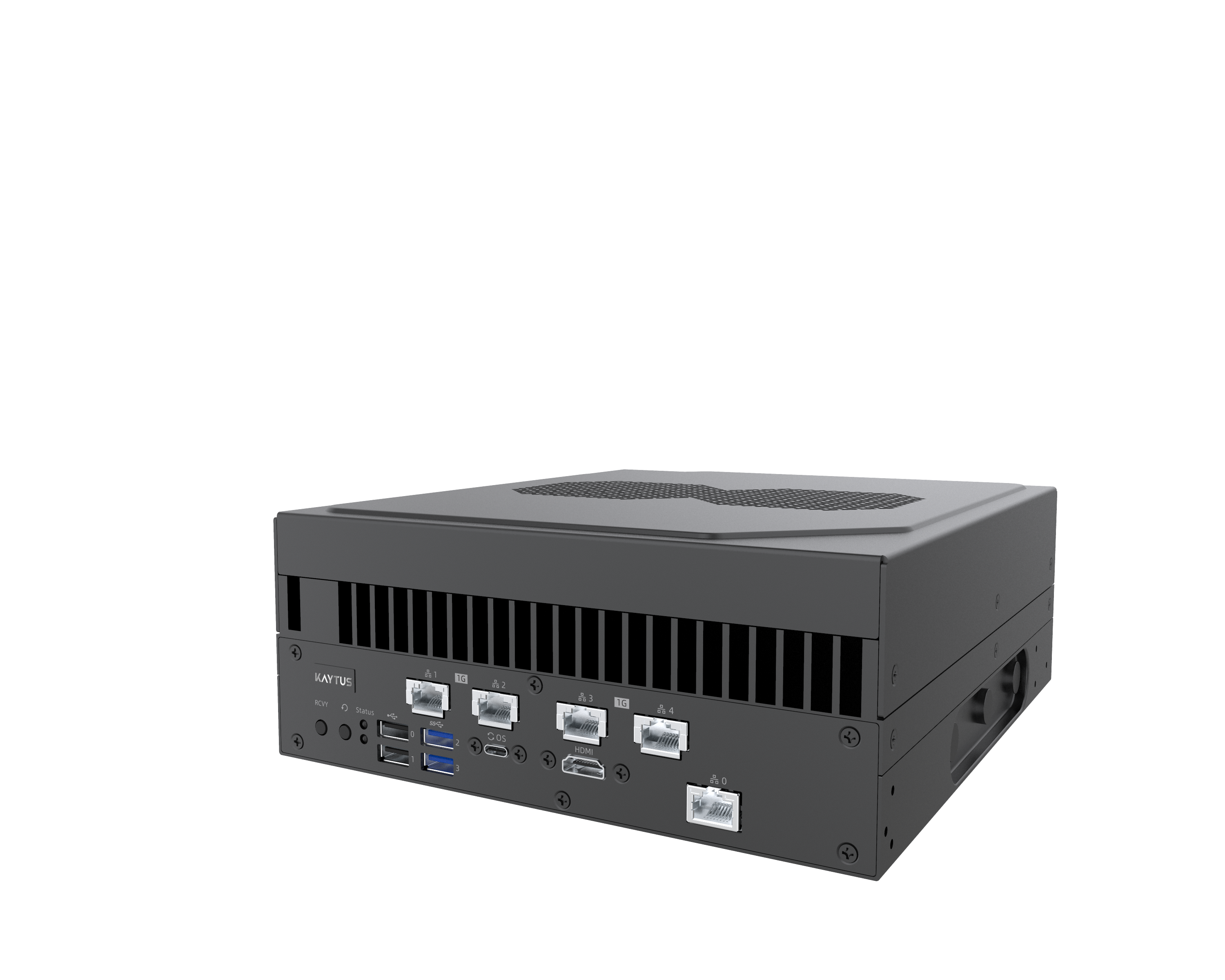

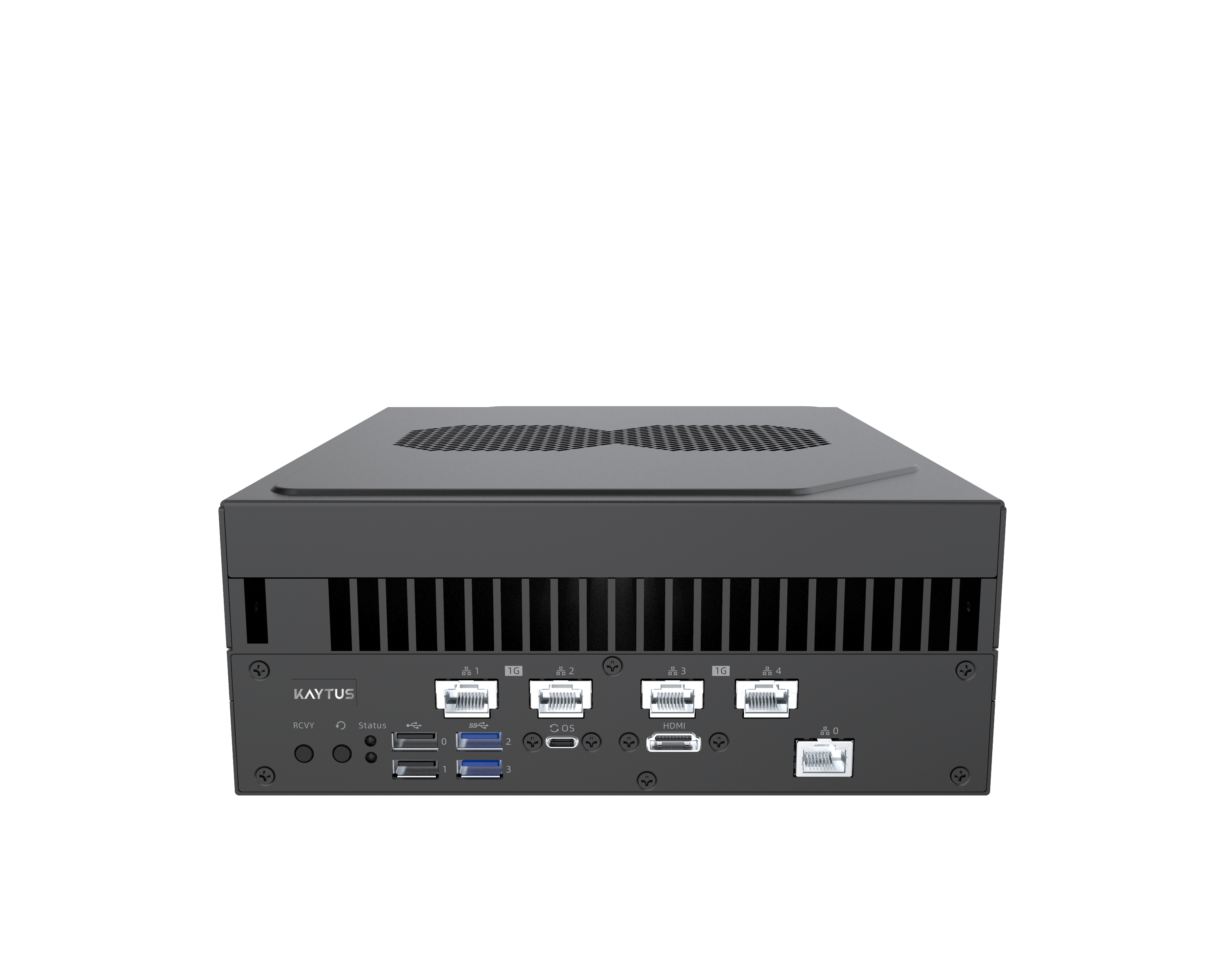

KES860 Edge Servers

Key Features

More Advanced Tool Ecosystem

Enhanced universality: Compatible with the CUDA language ecosystem tools,facilitating efficient model porting and iteration.
Rich software ecosystem: Supports integration with a wide range of application software, offering strong adaptability to customer-specific requirements.
Improved stability: The system has been extensively deployed and tested, demonstrating high stability and reliability while being less prone to crashes or failures.
Higher Reliability Verification

The entire system has passed comprehensive tests, including power cycling, temperature, vibration, and continuous operation assessments. Rigorous and thorough testing of firmware, operating system, and performance has been conducted. We provide comprehensive guarantees and technical support to ensure the reliability of continuous operation for the whole machine.
High Edge AI Power

The inference engine delivers a measured frame rate of over 200 frames per second.
It supports hardware decoding of up to 32 channels of 1080p video at 25 FPS using the H.265 protocol.
RAM options are available up to 32/64GB.

Technical Specifications

Spec	KES860	KES860 refresh
CPU	8 - core Nvidia Arm architecture CPU (2MB L2 cache + 4MB L3 cache)	-
Memory	32GB 256 bit LPDDR5	32/64GB 256 bit LPDDR5
GPU	1792 Core NVIDIA Ampere Architecture GPU (56 Tensor Computing Cores)	32G Module：1792 Core NVIDIA Ampere Architecture GPU (56 Tensor Computing Cores)64G Module：2048 Core NVIDIA Ampere Architecture GPU (64 Tensor Computing Cores)
Network	5x1Gb RJ45 ethernet	-
Wireless	Support 5G or GPS (selectable)	-
USB	2xUSB 3.02xUSB 2.01xUSB Type-C (used for Orin module system relashing)	-
Display	1×HDMI	-
Typical Consumption	40W	55W
Power	2pin Phoenix terminal 12VDC, powered by a 100W wide temperature adapter, 220VAC
Working Environment	Working temperature: - 25℃~65℃; Working humidity: 5%~95% R.H; Altitude: < 3000m Explanation: This product is recommended to be stored at a humidity of 30%~70% R.H, with a long - term working humidity of 5%~85% R.H. It can support up to 95% R.H. in a short period of time. It is not recommended to operate in environments with a humidity of 85% R.H. or higher for a long time. If there are special environmental requirements, it is recommended to add moisture - proof measures.	Working temperature:32G: -25℃~70℃; 64G: - 25℃~70℃;Working humidity: 5%~95% R.H; Altitude: < 3000m Explanation: This product is recommended to be stored at a humidity of 30%~70% R.H., with a long - term working humidity of 5%~85% R.H. It can support up to 95% R.H. in a short period of time. It is not recommended to operate in environments with a humidity of 85% R.H. or higher for a long time. If there are special environmental requirements, it is recommended to add moisture - proof measures.
Dimension	250mm (D) x 220mm (W) x 65mm (H)	250mm (D) x 220mm (W) x 89mm (H)
IP	IP40	IP40
System	Jetpack5.1.2	Jetpack5.1.2
