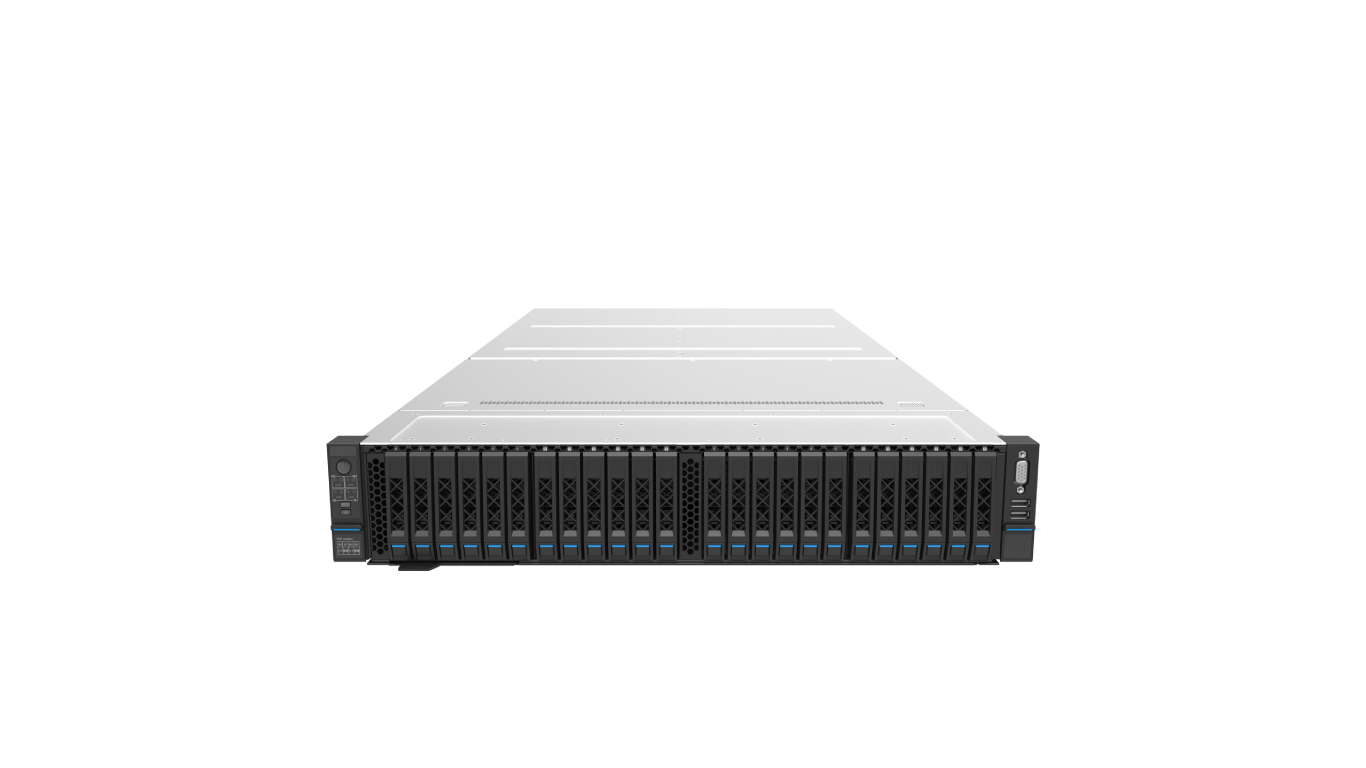

The K24V3, a new-generation high-density multi-node server, supports both Intel and AMD platforms. Featuring compatibility with 3 types of single-socket/dual-socket compute nodes, it is tailored for high-performance computing optimization. The dual-socket configuration accommodates both air cooling and liquid cooling, with cold plates covering CPUs, DIMMs, and VR within a node. This approach achieves a high liquid cooling ratio, effectively reducing system power consumption and operating noise, and meeting the low PUE demand, assisting customers in building a new generation of green high-density data centers.
Power capping feature provided, achieving system-level efficiency and energy saving.
Utilizing EVAC heatsinks to significantly optimize fan speed and reduce system power.
Supporting up to 24 SFF NVMe/SAS/SATA drives or configurations without drives and backplanes.
Offering optional internal SATA/NVMe M.2 SSD modules to accommodate diverse storage configurations.
Industry-leading CPU computing power provided, supporting 4 5th Gen AMD EPYC™ 9005 series processors in a 2U space.
Supporting high-speed IB NDR network for high-bandwidth node interconnection.
Chassis Model | Maintenance | Cooling | |
K24-E3-A0-R0-01 | Rear I/O | Air cooling | |
Form Factor | 2U rack chassis, including 4 independent hot-swap single-socket computing nodes | ||
Storage | Configuration 1: 24× 2.5-inch SATA/SAS/NVMe drives Configuration 2: No drives | ||
Power Supply | 4x N+N redundant hot-swap 2,000W/2,200W Platinum/Titanium PSUs | ||
System Cooling | 6x front 6056 system cooling fans with N+1 rotor redundancy | ||
Node Model | Maintenance | Cooling | |
KM1160-E3-A0-R0-00 | Rear I/O | Air cooling | |
Form Factor | 1U half-width single-socket compute node | ||
Processor | One 5th Gen AMD EPYC™ 9005 series processor per node | ||
Memory | Up to 12x DDR5 RDIMMs (6,400MHz) per node | ||
PCIe Expansion | 2x PCIe 5.0 x16 slots per node | ||
Storage | Configuration 1: 6× 2.5-inch SATA/SAS/NVMe drives per node Configuration 2: No drives 2× internal SATA/PCIe M.2 SSDs per node | ||
