KR1180V2

Introduction

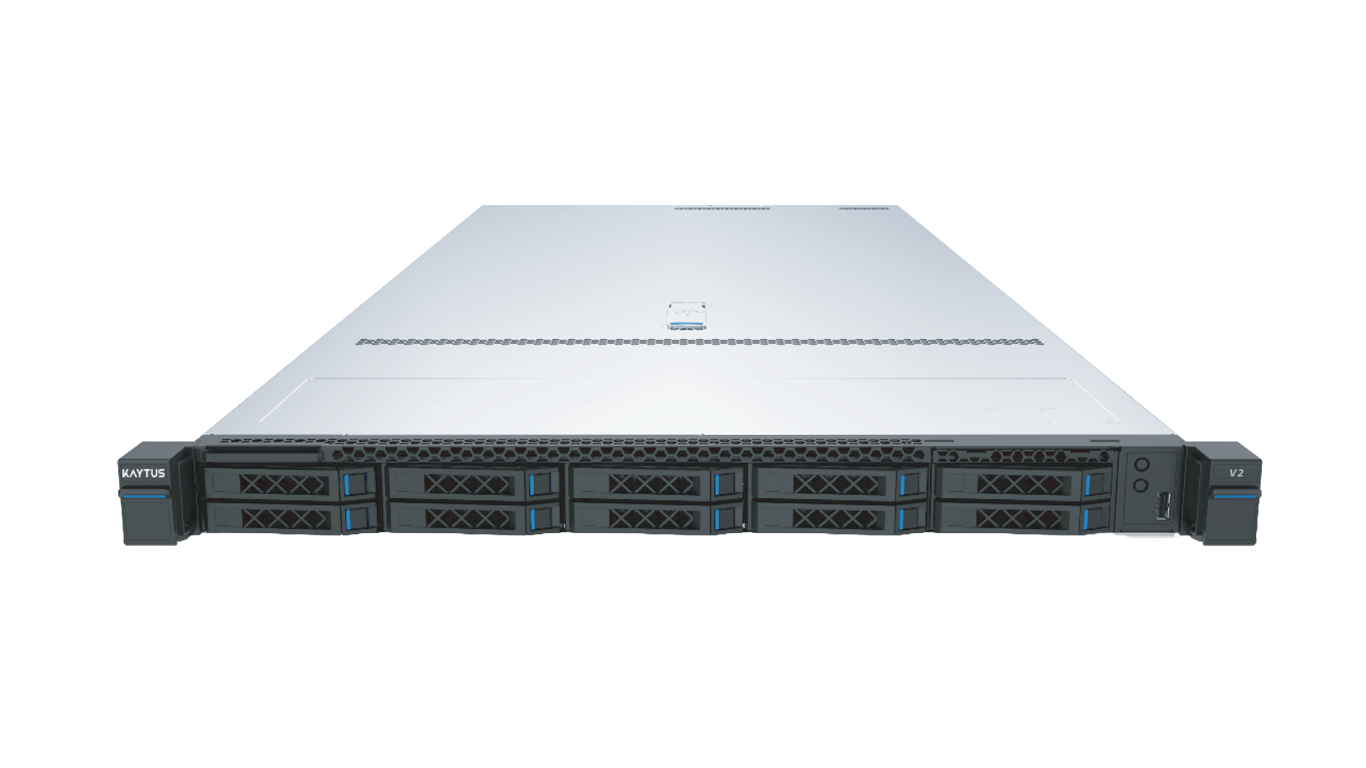

The KAYTUS KR1180V2 is a high-density, cost-effective enterprise 1U 1-socket rack server powered by the AMD EPYC™ 9004 series processor. It boasts multiple cores, high base frequency, and large caches, delivering exceptional computing performance in a 1U high-density space. The server offers balanced networking and expansion capabilities while saving data center space, making it suitable for various application scenarios such as all-flash storage, bare metal cloud service, video transcoding and big data.

Key Features

Eco-friendly and cost-effective

Supports intelligent fan speed control to effectively reduce fan noise and power consumption; supports Titanium PSUs to provide higher power conversion efficiency.
Uses innovative 1S1U design to effectively save the server procurement cost, power consumption and server space while ensuring the server performance.
Intelligent and secure

Supports intelligent fault diagnosis of InManage management platform and tool-less operation and maintenance.
Realizes BIOS/BMC chip-level redundancy to improve firmware security; supports secure erasing of drive data to prevent the firmware from malicious tampering.
Supports AMD SEV technology to ensure a more secure data transmission.
Ultimate density

Up to 4 × 3.5-inch hot-swap SAS/SATA/NVMe drive + 4 × 2.5-inch hot-swap SAS/SATA/NVMe drive, 10 × 2.5-inch hot-swap SAS/SATA/NVMe drive, or 16 × E1.S SSD.
Up to 5 standard PCIe slots and 2 hot-swap OCP 3.0 cards.
Excellent performance

1 AMD EPYC™ 9004 processor, with up to 128 cores, 256 threads, up to 400W TDP, a max. boost frequency of 4.4GHz, and an L3 cache of up to 384MB.
Up to 24 DDR5 DIMMs, delivering superior speed, high availability, and a memory capacity up to 6TB.

Technical Specifications

Item	Description
Form Factor	1U rack server
Processor	1 × AMD EPYC™ 9004 series processor Up to 128 cores Up to 384MB L3 cache Up to 400W TDP
Memory	Up to 24 DDR5 DIMMs Up to 6TB memory capacity
Storage	Front: Up to 4 × LFF SAS/SATA/NVMe drive + 4 × SFF SAS/SATA/NVMe drive Up to 10 × SFF SAS/SATA/NVMe drive Up to 16 × E1.S SSD 8 × SFF drive + 2 × standard HHHL PCIe expansion card
Storage	Internal: 2 × optional SATA M.2 SSD or 2 × optional PCIe M.2 SSD
Network	2 × hot-swap OCP 3.0 x8/x16 card 1/10/25/40/100Gb PCIe NICs
I/O Expansion Slot	Up to 5 × standard PCIe expansion card 2 × OCP 3.0 card
Port	Front: 4 × LFF + 4 × SFF front panel: 1 × USB 3.0 port, 1 × VGA port 10 × SFF front panel: 1 × USB 2.0 port Rear: 1 × VGA port, 1 × RJ45 management port, 2 × USB 3.0 port, 1 × Micro-USB serial port
Fan	air cooling；8×hot-swap fans with N+1 redundancy
Power Supply	1+1 redundant hot-swap PSUs with the output power of 550W/800W/1,300W/1,600W/2,000W
Security Feature	TPM 2.0, TCM, supports AMD SEV, etc.
System Management	BMC ASPEED AST2600
Operating System	Microsoft Windows Server, SLES 15.4, RHEL 9.0, etc.
Dimensions (W × H × D)	438mm × 43.05mm × 800/850mm
Weight	Full conﬁguration: ≤20 kg (For details, please refer to the White Paper)
Operating Temperature	10°C to 35°C (5°C to 45°C for some models. For more information, see the corresponding white paper.)
