KR2180V2

Introduction

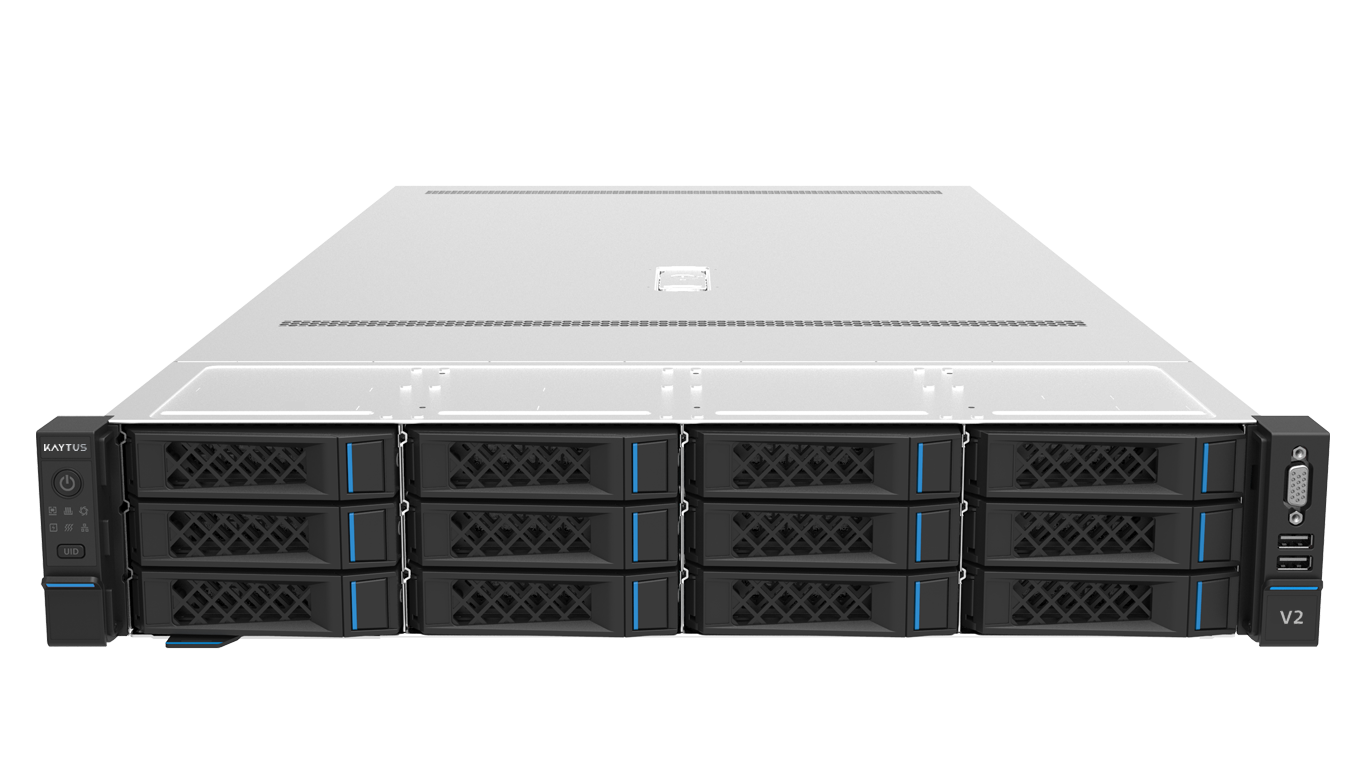

The KAYTUS KR2180V2 is an enterprise 2U 1-socket rack server powered by the AMD EPYC™ 9004 series processor. It boosts multiple cores, high base frequency, large caches, and high scalability, allowing for maximum performance from a single processor. With maximized storage and expansion in a 2U space, it is particularly well-suited to provide services in scenarios such as big data, distributed storage, video transcoding and virtualization.

Key Features

Eco-friendly and cost-effective

Supports intelligent fan speed control to effectively reduce fan noise and power consumption; supports Titanium PSUs to provide higher power conversion efficiency.
Uses single-socket design to lower the procurement cost and power consumption of the server, and offers TCO benefits in advantageous scenarios such as big data processing.
Intelligent and secure

Supports intelligent fault diagnosis of InManage management platform and tool-less operation and maintenance.
Realizes BIOS/BMC chip-level redundancy to improve firmware security; supports secure erasing of drive data to prevent the firmware from malicious tampering.
Supports AMD SEV technology to ensure a more secure data transmission.
Ultra-high scalability

Up to 20 × 3.5-inch SATA/SAS drive, 28/29 × 2.5-inch SATA/SAS drive, 24 × U.2 NVMe/E3.S SSD
Up to 8 standard PCIe slots and supports 2 OCP 3.0 x8/x16 cards.
Up to 4 DW GPUs
Excellent performance

1 AMD EPYC™ 9004 series processor, with up to 128 cores, 256 threads, a max. boost frequency of 4.4GHz, and an L3 cache of up to 384MB.
Up to 24 DDR5 DIMMs, delivering superior speed, high availability, and a memory capacity up to 6TB.

Technical Specifications

Item	Description
Form Factor	2U rack server
Processor	1 × AMD EPYC™ 9004 series processor Up to 128 cores Up to 384MB L3 cache Up to 400W TDP
Memory	Up to 24 DDR5 DIMMs (up to 4,800MT/s at 1DPC) Up to 6TB memory capacity
Storage	Front: 12 × 3.5-inch SAS/SATA/NVMe drive 24 × 2.5-inch SAS/SATA/NVMe/E3.S drive 25 × 2.5-inch SAS/SATA drive (with 4 NVMe drives supported)
	Internal: 2 × SATA M.2 SSD or 2 × PCIe M.2 SSD 4 × 3.5-inch SAS/SATA drive
	Rear: Up to 4 × 3.5-inch SAS/SATA drive Up to 4 × 2.5-inch SAS/SATA/NVMe drive
Network	2 × hot-swap OCP 3.0 x8/x16 card 1/10/25/40/100Gb PCIe NICs
I/O Expansion Slot	Up to 8 × FH PCIe 5.0 expansion card 4 × DW GPU 2 × OCP 3.0 x8/x16 card
Port	Front: 1 × USB 3.0 port, 1 × USB 2.0 port, 1 × VGA port, 1 × UID button, 1 × power button and LED, 1 × status LED Rear: DC-SCM, 2 × USB 3.0 port, 1 × VGA port, 1 × RJ45 management network port, 1 × Micro USB serial port, and 1 × UID button and LED
Fan	air cooling; 6×hot-swap fans with N+1 redundancy
Management	BMC ASPEED AST2600
Power Supply	1+1 redundant hot-swap CPRS standard PSUs with the output power of 550W/800W/1,300W/1,600W/2,000W/ 2,700W
Security Feature	TPM 2.0, TCM, supports AMD SEV, etc.
Dimensions (W × H × D)	435mm × 87mm × 800mm
Weight	Full conﬁguration: ≤33 kg (For details, please refer to the White Paper)
Operating Temperature	10°C to 35°C (5°C to 45°C for some models. For more information, see the corresponding white paper.)
