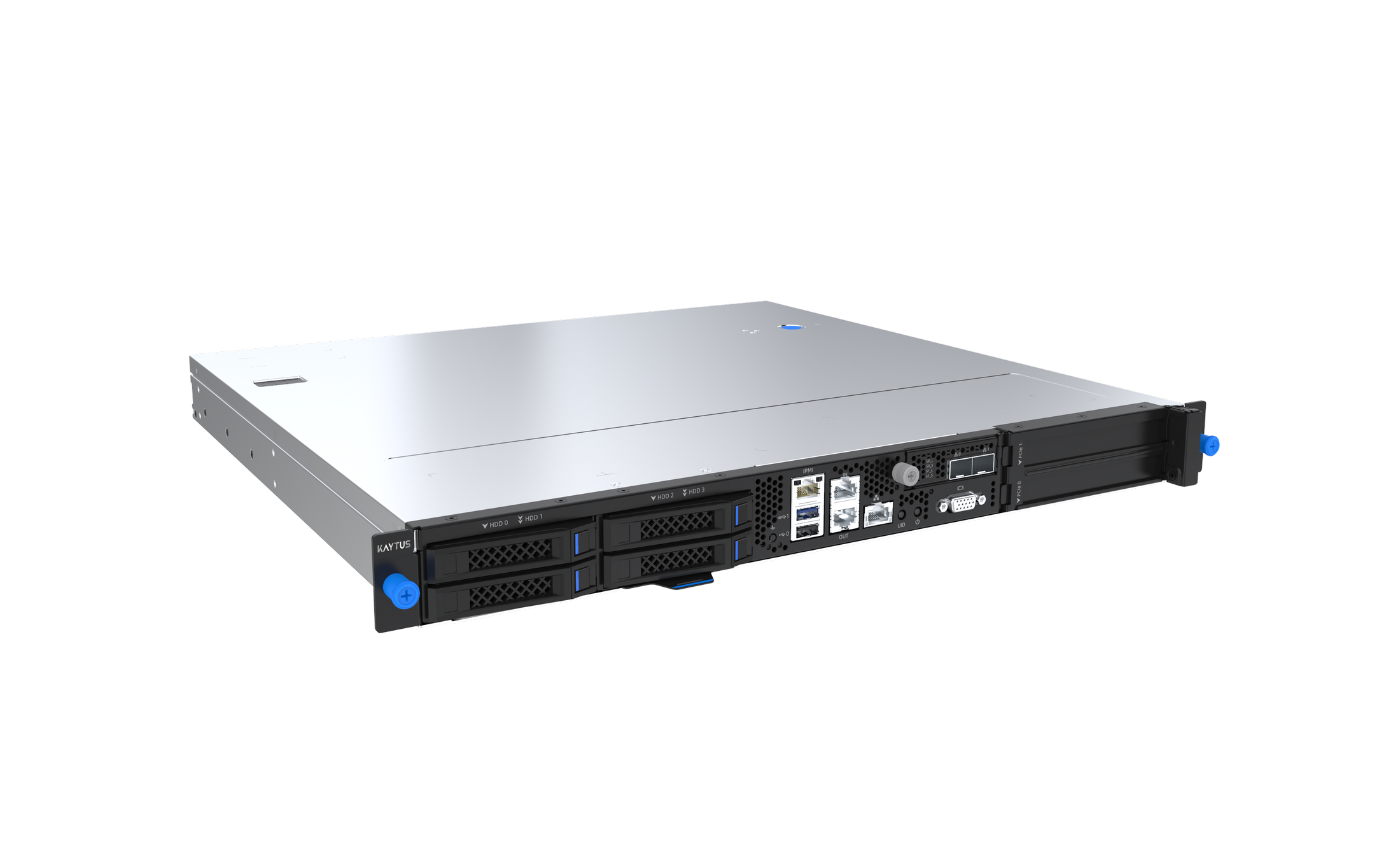

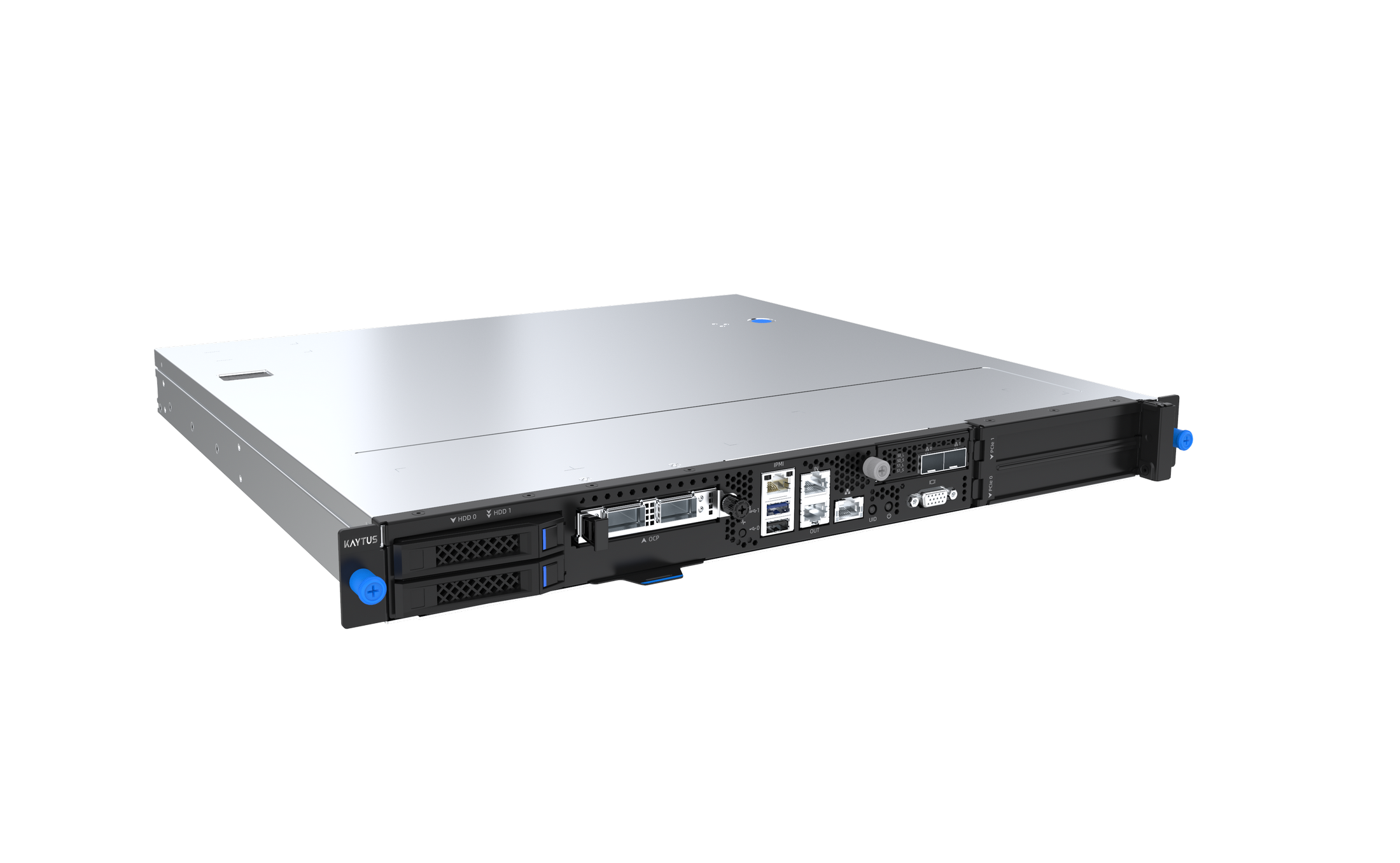

The KAYTUS Edge Server KE1160V2 is a 1U1S server meticulously optimized for 5G edge computing. It supports the lastest 4th/5th generation Intel® Xeon® scalable processors and supports three clock synchronization modes. It can offer powerful performance, flexible expansion capabilities, outstanding environmental adaptability, and convenient operation for lightweight edge computing such as 5G communication, cloud platform management, energy inspection, and transportation. It can easily meet the extreme challenges in edge computing.
Only 420mm depth, which can be deployed not only in racks, but also hanged directly on walls.
Adaptable Temperature: stable operation under operating temperature -5℃~55℃ and humidity 5%-90%.
Class A/Class B EMC design, optional dust cover, design to achieve level-9 intensity standard.
Supports the latest AVX instruction set extensions, accelerates vector operations.
Integrated ACC200 module provides professional 5G accelerated load capacity.
Enabling mixed deployment modes.
Supports up to 2 PCIE 4.0 X16 slots.
Provides a removable onboard NIC meeting the 1588 PTP protocol and up to 1x OCP NIC slot.
Reserved 2 X8 MCIO design on the motherboard, providing expansion possibilities.
Supports newest 4th/5th Intel ® Xeon ® scalable processors, up to TDP 225W, with up to 6 DDR5 4800MHz RDIMM.
Meeting OTII 1U 3.0 specification, supports three clock synchronization methods and different pin definition.
Supports up to four 2.5" HDD/SDD in the front, providing the ultimate storage access performance.
| Model | Description |
| Specification | 1U rackmount, 420mm depth |
| Processor | Supports one Intel® Xeon® 4th/5th Generation Scalable Processor with a maximum power of 205W. |
| Chip | Supports Intel® Emmitsburg |
| Memory | Supports up to 6 sticks of DDR4 4800 MT/s |
| Storage | Front: Supports up to 4x 2.5" HDD/SDD Built-in: Maximum 1x M.2 SSD hard disk |
| Storage Controller | Motherboard integrated SATA controller, supporting RAID 0/1/5/10 Optional external SAS/RAID card, supporting multiple RAID modes |
| Network | Standard PCIe Ethernet card: external standard PCIe Ethernet card, with the maximum rate supporting PCIE 4.0 X16 On-board network card: integrates one I210 RJ45 network port, supports for an optional X710 on-board dual-port network card, supports for 1588 PTP protocols OCP NIC: Supports optional one OCP 3.0 NIC, maximum support PCIE 4.0 X16 |
| I/O Expansion | Maximum expansion of two standard PCIe 4.0 X16 slots, through the selection of different PCIe Riser card to support a variety of PIN-defined clock acceleration cards Supports up to two HHHL single-width GPUs and one FHFL 150W powered GPU The motherboard supports 2 X8 slimline, which can be customized to meet different non-standard plug-in cards |
| Interface | Front: 2 USB 3.0 ports, 1 VGA port, 1 UID indicator and its keys, 2 RS422 ports, 1 IPMI interface |
| Fan | 5 hot-swappable N+1 redundant 4056 fans (dual rotor) |
| Power Supply | Supports two 550W/800W (Platinum/Titanium/ClassB), supports for DC/AC power supply, 1 + 1 redundant |
| System Management | On-board BMC management module, supports IPMI/SOL/KVM Over IP/Virtual Media and other management features, supports NCSI function |
| Operation System | Supports Windows/ Red Hat/ SUSE/ Centos/ Ubuntu and other mainstream operating systems |
| Dimension | W (Width) 448 mm; H (Height) 44.5 mm; D (Depth) 420 mm |
| Weight | Fully loaded weight less than 25kg, please refer to the technical white paper for details. |
| Operating Environment | -5℃~55℃, please refer to the technical white paper for details Supports Level-9 seismicity Supports optional dust cover |
