Introduction

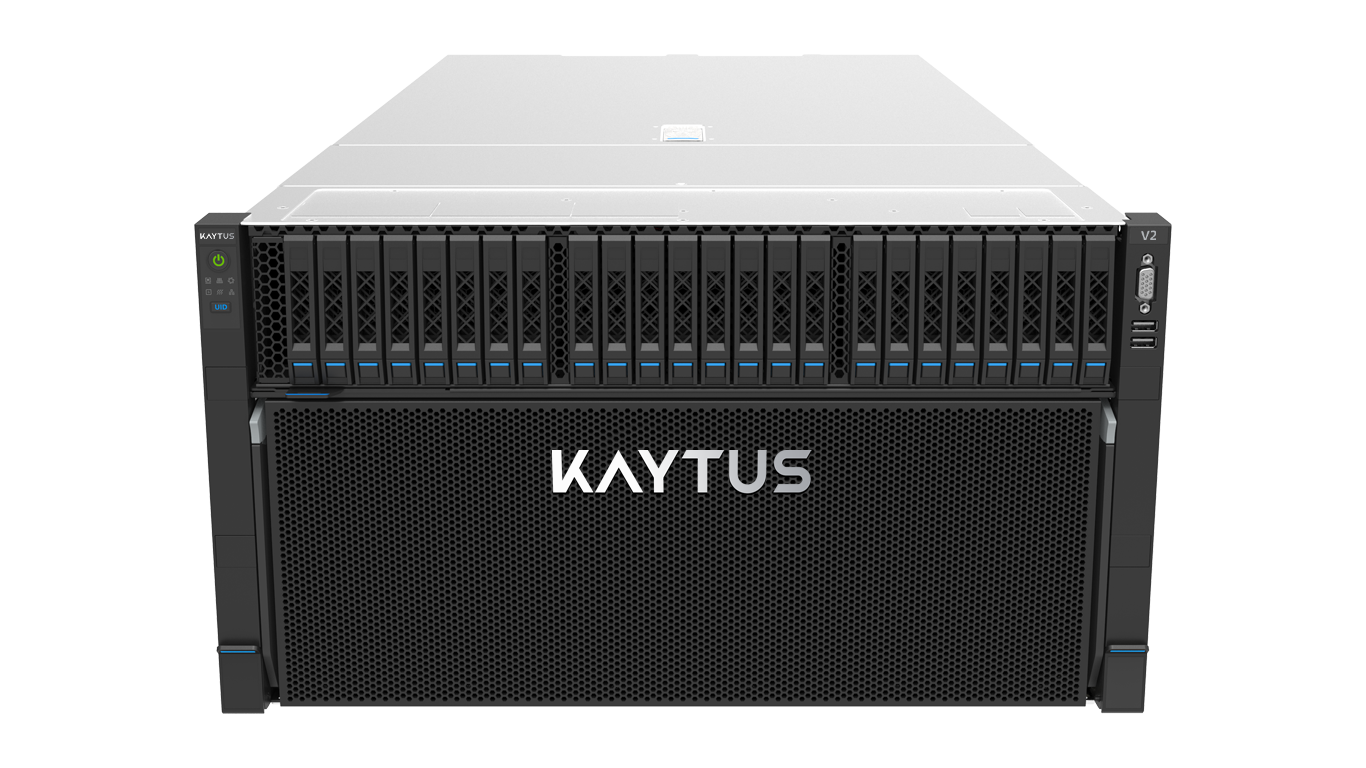

KR6288-X2-A0-R0-00, the 6U hyperscale training platform equipped with dual 4th Gen Intel® Xeon® Scalable Processors and 1x NVIDIA HGX-Hopper-8GPU module, features industry-leading performance, ultimate I/O expansion, and ultrahigh energy efficiency. The precisely optimized system architecture with 4x CPU to GPU bandwidth, up to 4.0Tbps networking bandwidth, 8TB system memory, and 300TB massive local storage can fully satisfy the communication and capacity demands of multi-dimensional parallelism training for giant-scale models. 12 PCIe expansions can be flexibly configured with CX7, OCP3.0, and multiple SmartNICs, making it an ideal solution for both on-premises and cloud deployment. It is built to handle the most demanding AI computing tasks like trillion-parameter Transformer model training, massive recommender systems, AIGC, and Metaverse workloads.

Key Features
  • Unprecedented Performance
    Unprecedented Performance

    Powered by 8* NVIDIA latest GPUs in a 6U chassis, TDP up to 700W

    Support 2x 4th Gen Intel Xeon Scalable Processors

    Industry-leading performance with 16PFlops AI performance by 3 times enhancement. The Transformer Engine significantly accelerates the training speed of GPT large mode.


  • Optimized Energy Efficiency
    Optimized Energy Efficiency

    Extremely low air-cooled heat dissipation overhead, less fan, higher power efficiency

    54V, 12V separated power supply with N+N redundancy reducing power conversion loss

    Direct liquid cooling design with more than 80% cold plate coverage, PUE≤1.15

  • Leading Architecture Design
    Leading Architecture Design

    Lightning-fast intra-node connectivity with 4x CPU to GPU bandwidth improvement

    Ultra-high scalable inter-node networking with up to 4.0Tbps non-blocking bandwidth

    Cluster-level optimized architecture, GPU : Compute Network : Storage Network = 8:8:2


  • Multi-scenarios Adaptation
    Multi-scenarios Adaptation

    Full modular design and extremely flexible configurations satisfying both on-premises and cloud deployment

    Easily harness large-scale model training, such as GPT-3, LLaMA and Stable diffusion.

    Diversified SuperPod solutions accelerating the most cutting-edge innovation including AIGC, AI4Science and Metaverse

Technical Specifications

Item

KR6288-X2-A0-R0-00

Height

6U

GPU

1x NVIDIA HGX-Hopper-8GPU module, TDP up to 700W per GPU

Processor

2x 4th Gen Intel® Xeon® Scalable Processors, TDP 350W

Memory

32x DDR5 DIMMs, up to 4800MT/s

Storage

24x 2.5’ SSD, up to 16x NVMe U.2

M.2

2x Onboard NVMe/SATA M.2 (optional)

PCIe Slot

Support 10x PCIe Gen5 x16 slots. One PCIe Gen5 x16 slot can be replaced with two x16 slots (PCIe Gen5 x8 rate).

Optional support Bluefield-3, CX7, and various SmartNICs

RAID

Optional support RAID 0/1/10/5/50/6/60, etc., support Cache super capacitor protection

Front I/O

1x USB 3.0, 1x USB 2.0, 1x VGA

Rear I/O

2x USB3.0, 1x MicroUSB, 1x VGA, 1x RJ45

OCP

Optional support 1x OCP 3.0, support NCSI

Management

DC-SCM BMC management module with Aspeed 2600

TPM

TPM 2.0

Fan

GPU region: 6x 54V hot-swap fans with N+1 redundancy

CPU region: 6x 12V hot-swap fans with N+1 redundancy

Power

2x 12V 3200W and 6x 54V 2700W, Titanium CRPS PSU with N+N redundancy

Size

Width: 447mm, Height: 263mm, Length: 860mm

Weight

Net weight 92kg(Cross weight: 107kg)

Environmental

Parameters

Working temperature:10℃~35℃;  Storage temperature:-40℃~70℃

Working humidity:10%~80% R.H.;Storage humidity:10%~93% R.H.
