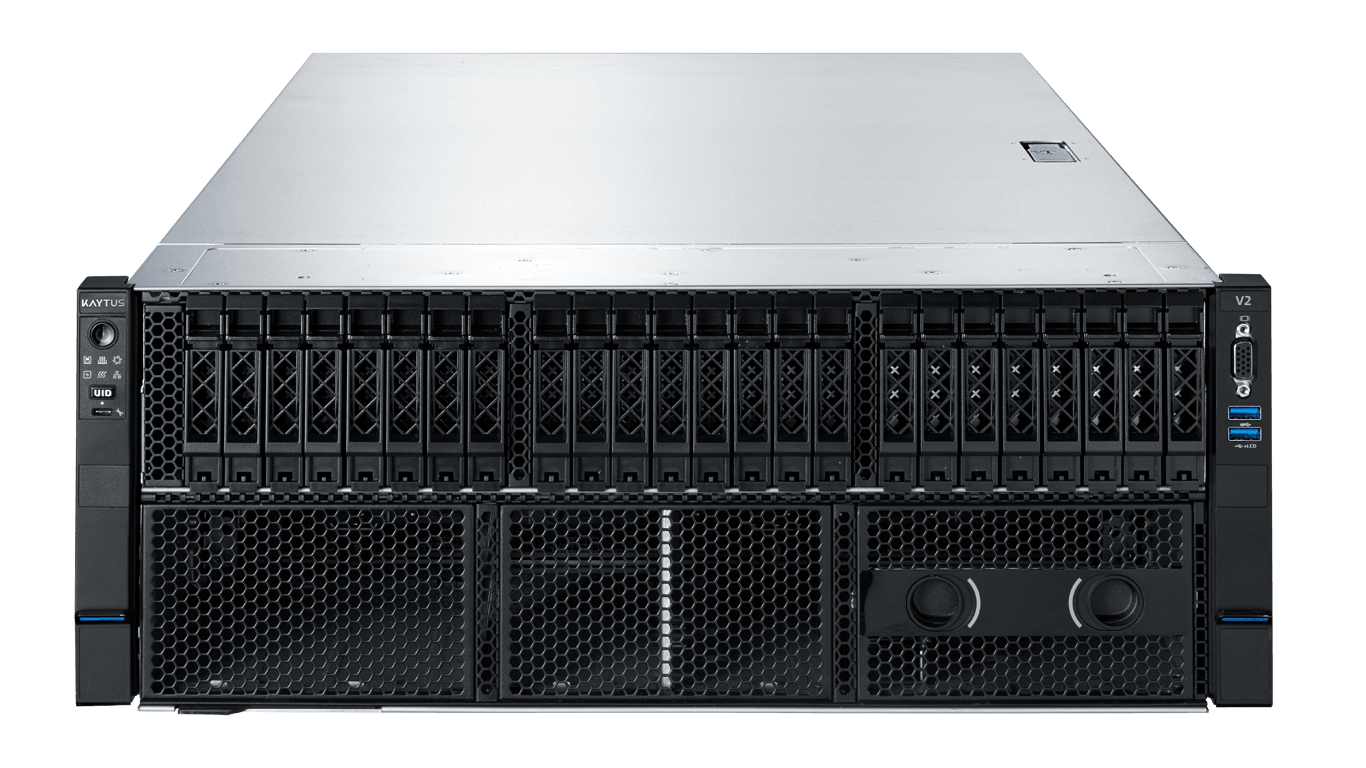

KR4268V2 is the latest product of KAYTUS KR4268 series server. It is a new generation artificial intelligence server, that provides excellent versatile computing performance and extremely flexible architecture, eight high-performance GPUs and supports switching based on application scenarios. Equipped with 2x 4th Gen Intel® Xeon® scalable processors, KR4268V2 provides up to 112 processor cores, 8TB system memory and 300TB local high-speed storage. It is optimized to complex application scenarios such as deep learning, metaverse, AIGC, AI+Science, etc., providing the most adaptable platform in the Intelligent computing era.
Abundant global AI partners, AMD, Intel, etc.
Leading deep learning frameworks, TensorFlow, PyTorch, PaddlePaddle, etc.
Powerful AIStation resource platform, algorithm platform and application optimization service
Mature Meta-brain ecology, providing application algorithms and solution services for all industries and scenarios
Modular design supports flexible component-level free combination
Powerful versatile platform adapts to the latest AI accelerator cards of various brands
25% improvement in cooling performance, 5% reduction in noise
Support N+N redundant 3000W platinum/titanium PSU
Support 2x 4th Gen Intel® Xeon® Scalable Processors, TDP 350W
Built-in 8TB system memory and 300TB local high-speed storage to improve data access speed
4 kinds of CPU-GPU topologies to flexibly match different AI application scenarios
Up to 4 times PCIE bandwidth improvement meets high-throughput data transmission
Upgraded PCIE Gen5.0 Architecture, supports up to 600W power comsumption
Support latest generation GPU cards
Latest CXL1.1 interconnect technology support storage-level memory space expansion and memory space sharing Support latest 400G NDR Infiniband and 400G OCP 3.0
Product Model | KR4268-X2-A0-R0-00 |
CPU | 2x 4th Gen Intel® Xeon® Scalable Processors, TDP 350W |
GPU | Supports 8x Dual-slot FHFL PCIe interface GPU cards, and supports ≥ 4 PCIe 5.0 x16 slots |
Chipset | Intel® Emmitsburg PCH C740 |
Memory | up to 32x DDR5 4800MHz RDIMM |
Internal PCIe | Supports for 2x PCIE 5.0 expansion |
Front I/O | 2x USB, 1x VGA, 1x USB Type-C |
Rear I/O | 1x Console, 2x USB 3.0, 1x RJ45, 1x VGA, 1x OCP 3.0 (support NC-SI) |
Storage | 24x 2.5 or 12x 3.5-inch SAS/SATA drive bays in the front, supports up to 16x NVME or E3.S Built-in 2x M.2 NVME/SATA SSD |
RAID | Optional support RAID0, 1, 10, 5, 50, 6, 60, etc. Supports Cache super capacitor protection, provide RAID state transition, RAID configuration memory |
OS | Supports mainstream operation system, Microsoft Windows Sever, Red Hat Enterprise Linux, Ubuntu Linux, CentOS, etc. |
Cooling | N+1 redundant system fans |
Power | 4x 1600W/2000W/2200W/3000W 80Plus Platinum/Titanium PSUs, support N+N redundancy |
Size (W*H*D) | 4U chassis, 447mm x 174.5mm x 850mm (W x H x D) |
Temperature | 5 - 35°C / 41°F - 95°F |
Full load weight | ≤87kg |
